How to provision, install, configure and keep thousands of Debian and Debian-based systems updated

This project manages around 3,000 Debian servers and 3,000 Debian-Based workstations across 300 branches.

This is a real-world case study of how to provision, install, configure and maintain thousands of Debian and Debian-based systems using Free Software.

The infrastructure combines Ansible, AWX, Proxmox, PXE, FreeIPA, GitLab CI/CD and several caching layers to automate the deployment and maintenance of approximately 6,300 systems across hundreds of branches.

The project started in 2018 and evolved continuously as the infrastructure, hardware, security requirements and software stack changed.

• Demo Site: https://filiales-gnu-linux.g.coop.ar
• Original Video: WebM (298 MB)
• Subtitle Video: WebM (298 MB)
• Spanish Subtitle: SRT (50 KB) VTT (44 KB)
• English Subtitle: SRT (48 KB) VTT (42 KB)
• English Slides: PDF (357 KB)
• Spanish Slides: PDF (357 KB)

Este post es una traducción al inglés, de la transcripción de la charla Cómo aprovisionar, instalar, configurar y mantener actualizados miles de sistemas Debian y basados en Debian

• Debian
• Ansible
• AWX
• Proxmox
• PXE
• FreeIPA
• GitLab CI/CD
• Infrastructure as Code
• GNU/Linux workstation management
• Automated deployment

This year, attending my first DebConf ¹, the DebConf26 ² in Santa Fe, I took the opportunity to give the talk "How to Provision, Install, Configure, and Keep Thousands of Debian and Debian-Based Systems Updated" as an update to the talk I presented at nerdearla ³ edition 2022 which was called "How to Migrate 6300 Machines to GNU/Linux Using Ansible and AWX" ⁴

My name is OSiRiS, and I am called OSiUX in the community. I work at gcoop ⁵, which is a Cooperative of Free Software, meaning we exclusively work with FreeSoftware ⁶ in a horizontal organization. We have no bosses, no employees.

Five members (partners) from gcoop attended the event; it is our first time at DebConf. We sponsored this event and give thanks to Debian ⁷ because we have 20 years of working with Free Software, and without Debian it would not have been possible.

I will show an update to a previous talk I gave in 2022, regarding the migration project of Branches /GNU/Linux of the Credicoop Bank Cooperative Limited ⁸, which is a cooperative bank.

And I will try to quickly review the migration process and then we will look at the differences in recent years. This project…

Basically, it is an Infrastructure as Code project using Ansible

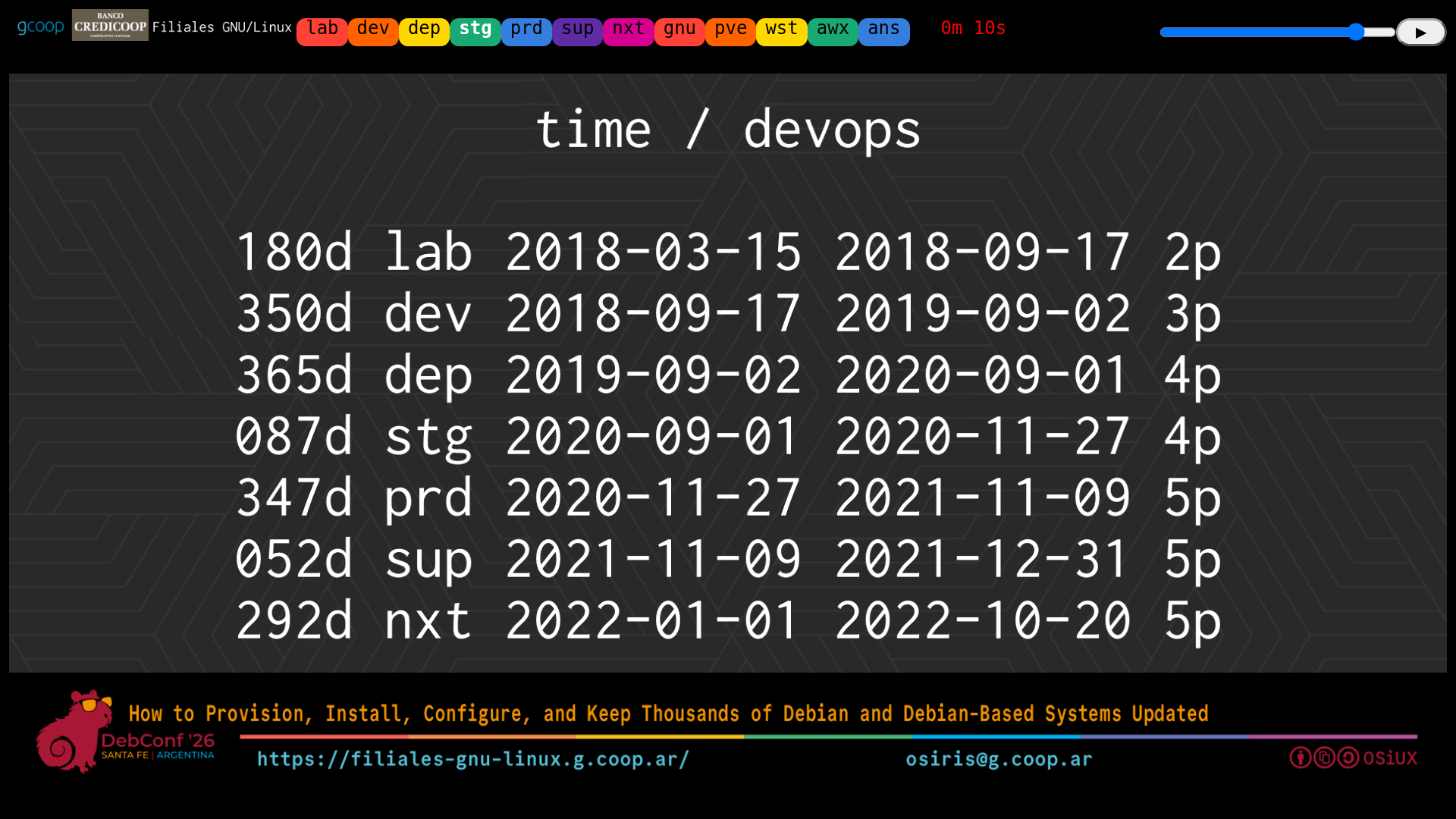

Well, at the beginning of the project, even though it took 6 months, we had to try to discover which tools from the Free Libre Open Source Software ecosystem would allow us to carry out the entire infrastructure migration of a bank across the length and breadth of Argentina.

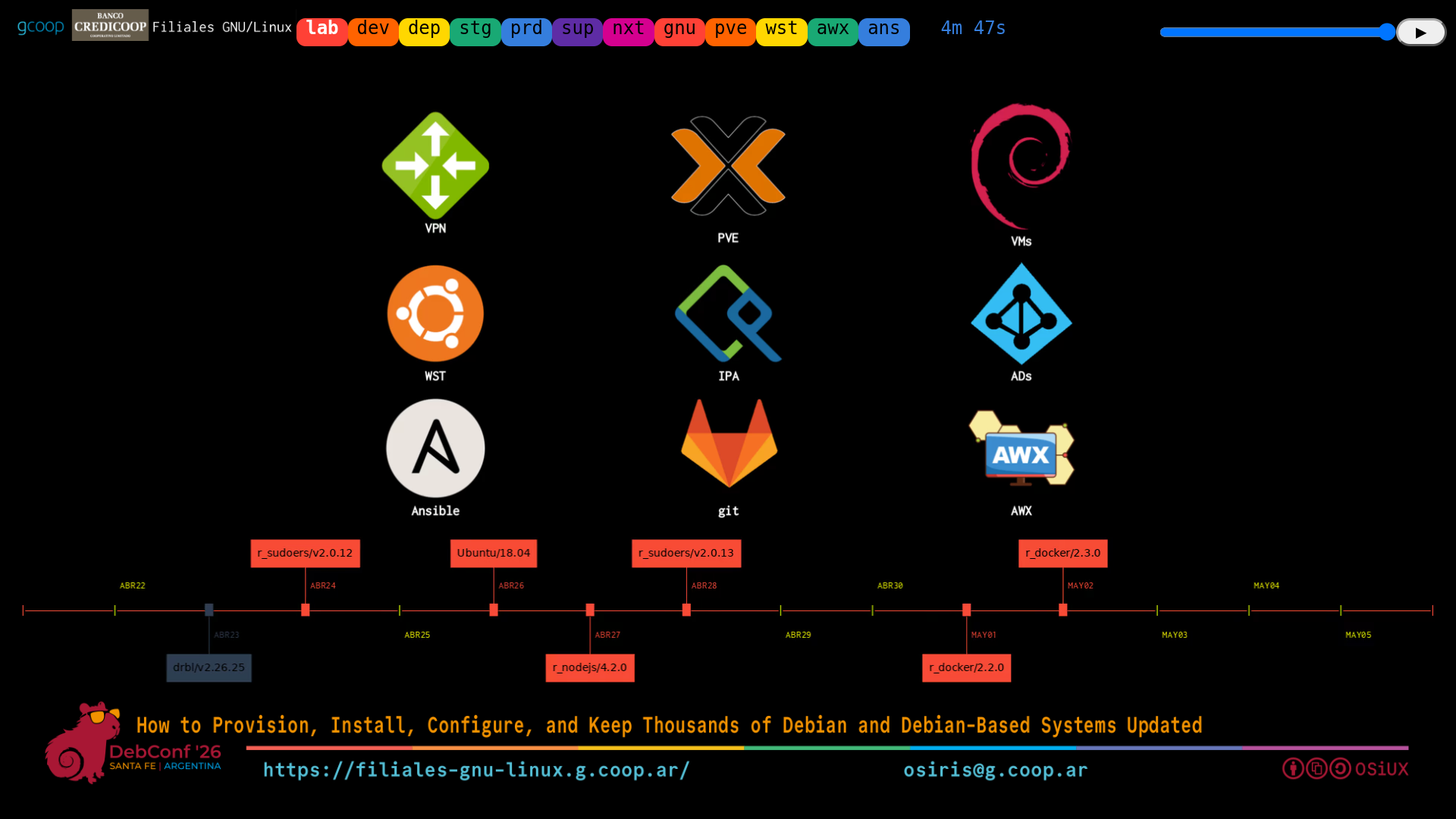

What we found was that the automation tool was Ansible because we were already using it. We would use GitLab ⁹. For ActiveDirectory authentication within Linux, we would use IPA. For AWX, obviously all servers would run on Proxmox ¹⁰. We had been working with Proxmox for years. The VMs inside the Proxmox servers would be Debian, obviously.

And for the Workstations, due to there being 3,000 of them and for Support reasons, we chose a distribution based on Debian. This… a little more updated.

What we have there, it doesn’t show very well there, but what is moving is that… underneath are all the components; it’s a timeline, all the dependency components we use, which are being updated worldwide, all the time. I mean, at that moment, in this month, a new versión of one component came out, and another, and another. And as you are figuring out how to do things, the whole ecosystem is updating. So it’s a problem to solve.

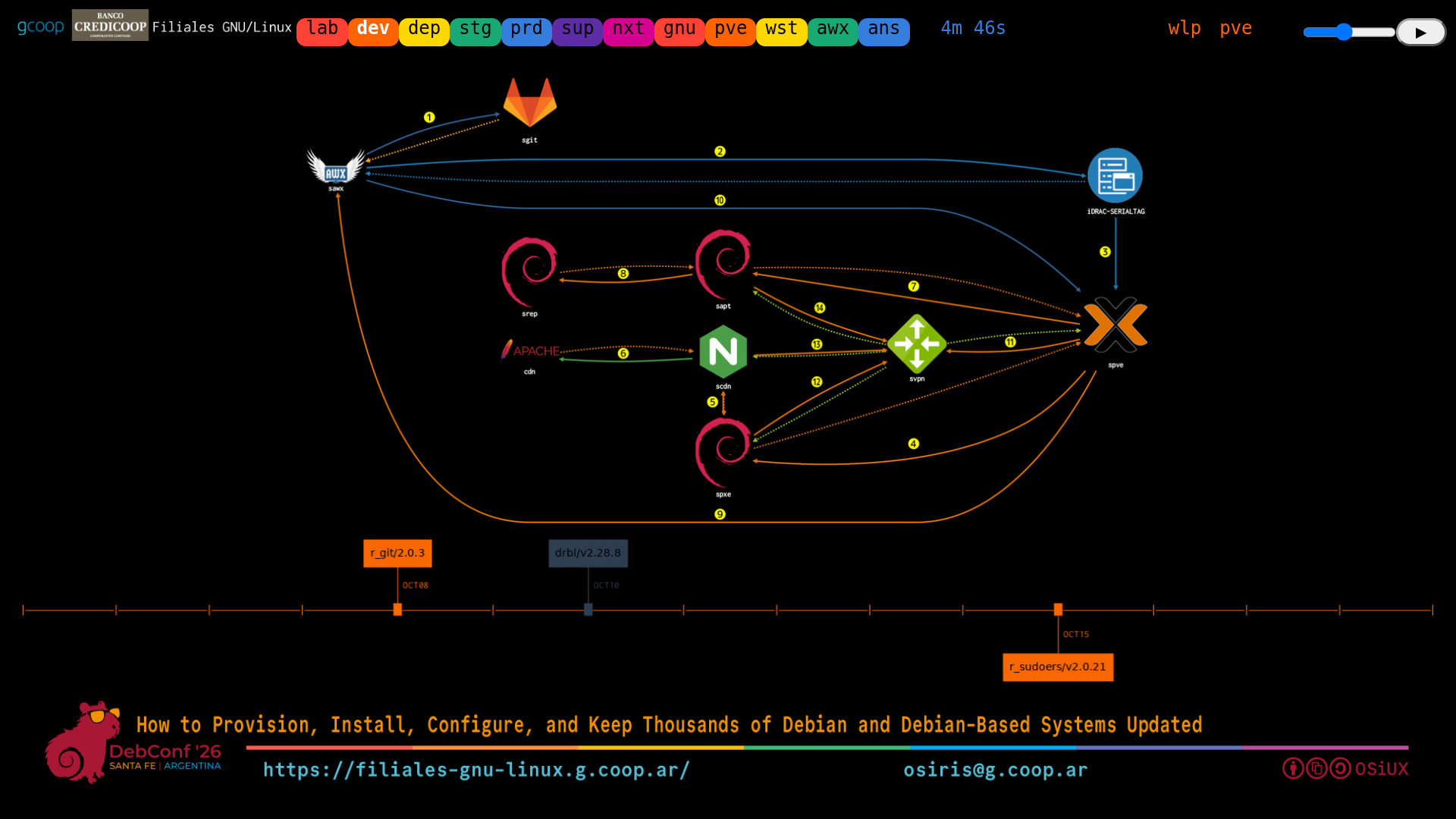

But well, what we reached was that in Development we managed to orchestrate a deploy idea, which is basically: we have an AWX, let me point it out like this, this is an AWX, and this AWX’s source of truth is a GitLab. So, AWX reads from GitLab everything that would be… I mean, playbooks, and the first step is to deploy the iDRAC.

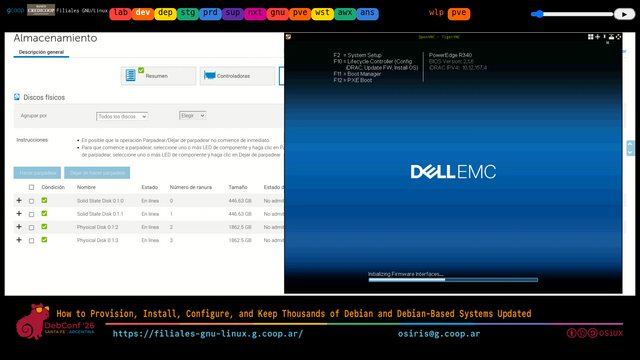

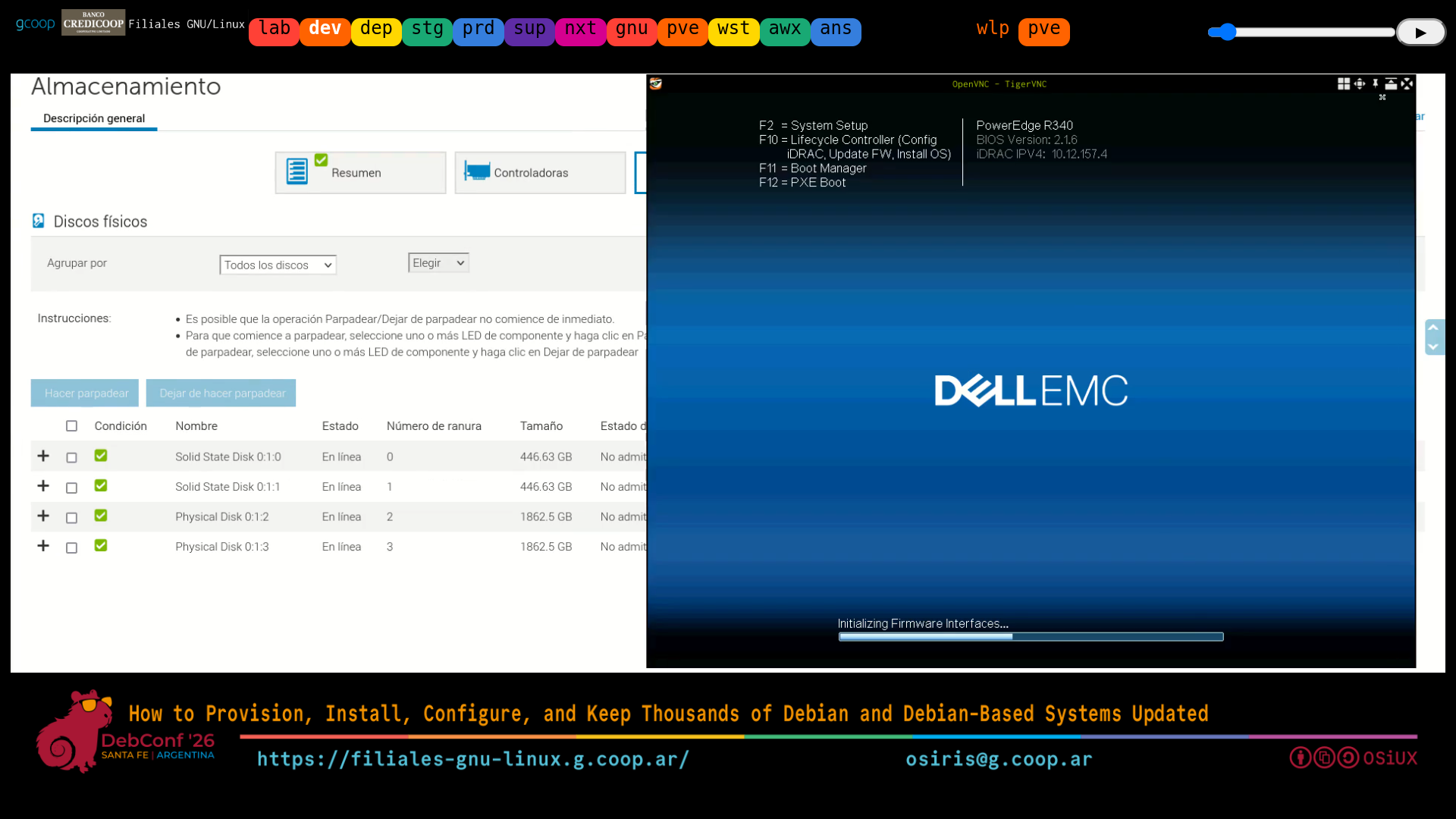

The iDRAC ¹¹ is the computer inside the computer. Inside the Dell servers we use, before the server even has anything, there is a small computer called iDRAC. Using a protocol called Redfish, we made playbooks that AWX connects to the iDRAC and does partition the disk, configure the BIOS, and reboot into PXE ¹². So, a brand-new computer fresh out of the box.

And immediately that will end up generating from one Proxmox, it will end up generating another Proxmox. Inside that Proxmox we have several VMs. One of those VMs is a PXE Server, I don’t see anything here for it, but it must be this one.

We have a server, well we have a CDN, which is a processing server, an Nginx that has all the resources, which in turn acts as a Proxy for another, which is an Apache, and a server that replicates this data. Well, this is done automatically and unattended, without operator intervention. That means a server comes straight out of the factory, you open the box, install power, install network, and from AWX a script is launched. This is the AWX infrastructure, sorry, the Proxmox one, we were going to see, here it shows how it launches, and this is just for monitoring, let’s say, everything is done unattended and the operator doesn’t need to see anything running. The AWX deploys the Proxmox via PXE, actually there are several stages; first it deploys a Debian NetInstall completely unattended, meaning you don’t have to touch anything, directly in OEM mode, it configures everything necessary for that server to be operational. When it finishes, in a hook, at the end of the Debian NetInstaller, we made a script that does this: it takes the MAC address of that machine, which is unique, and registers it in the AWX Inventory.

So that machine, which just received a random IP, we already know what its IP will be, what its iDRAC is, it permanently stays, for all the years that Server will last, referenced to that MAC address and to a serial number that the server’s own iDRAC has. So, in that way, it is easy to identify it.

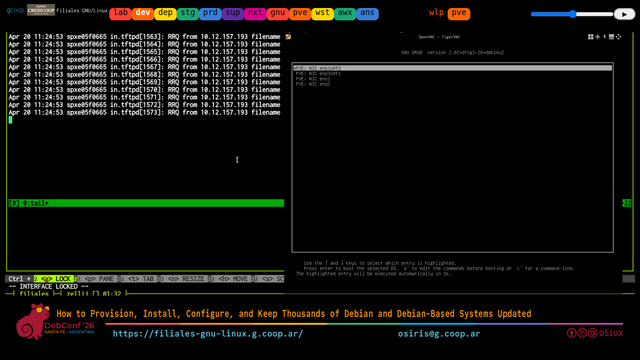

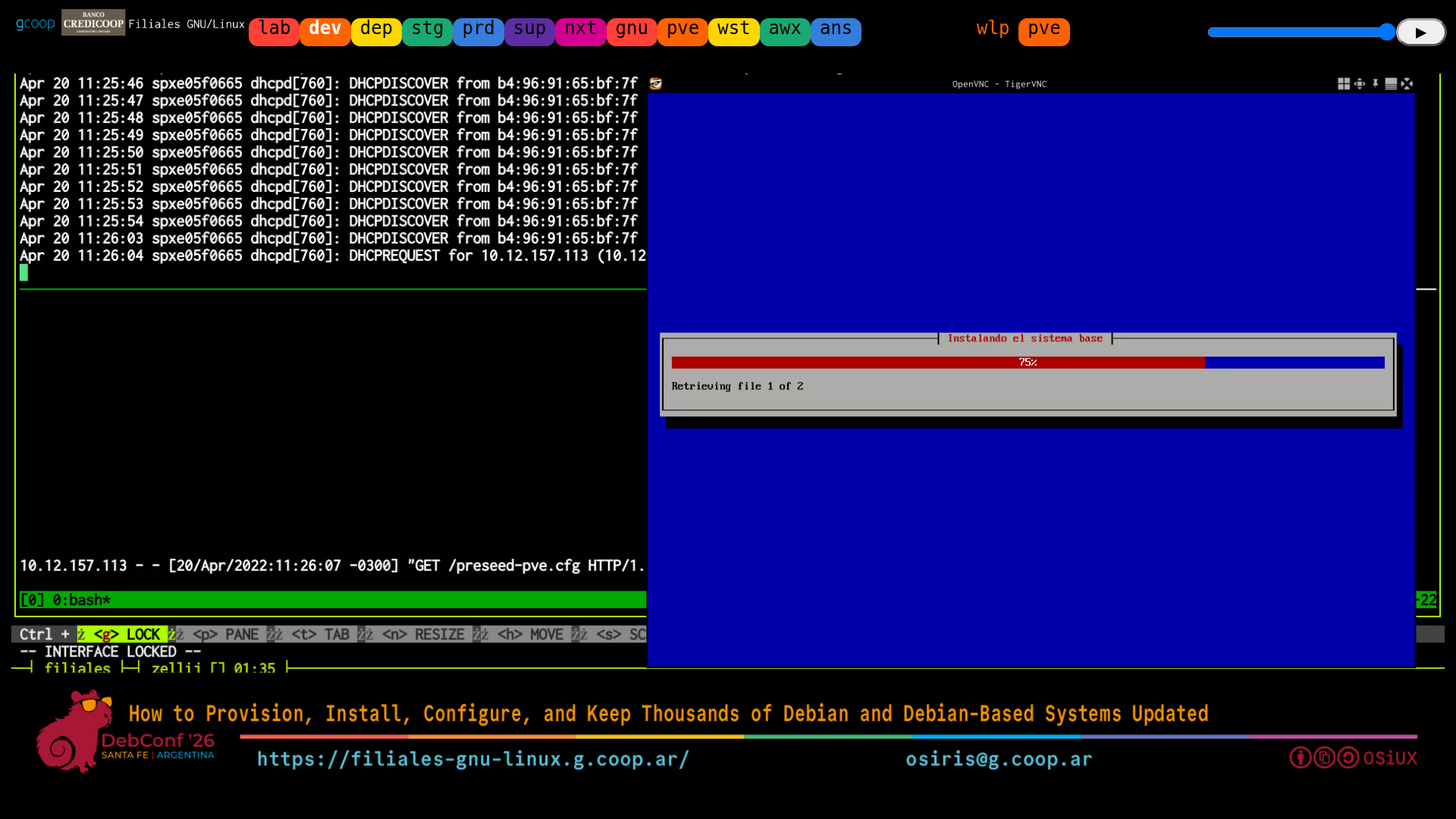

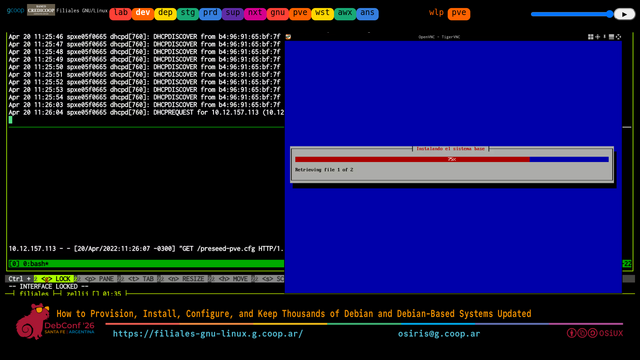

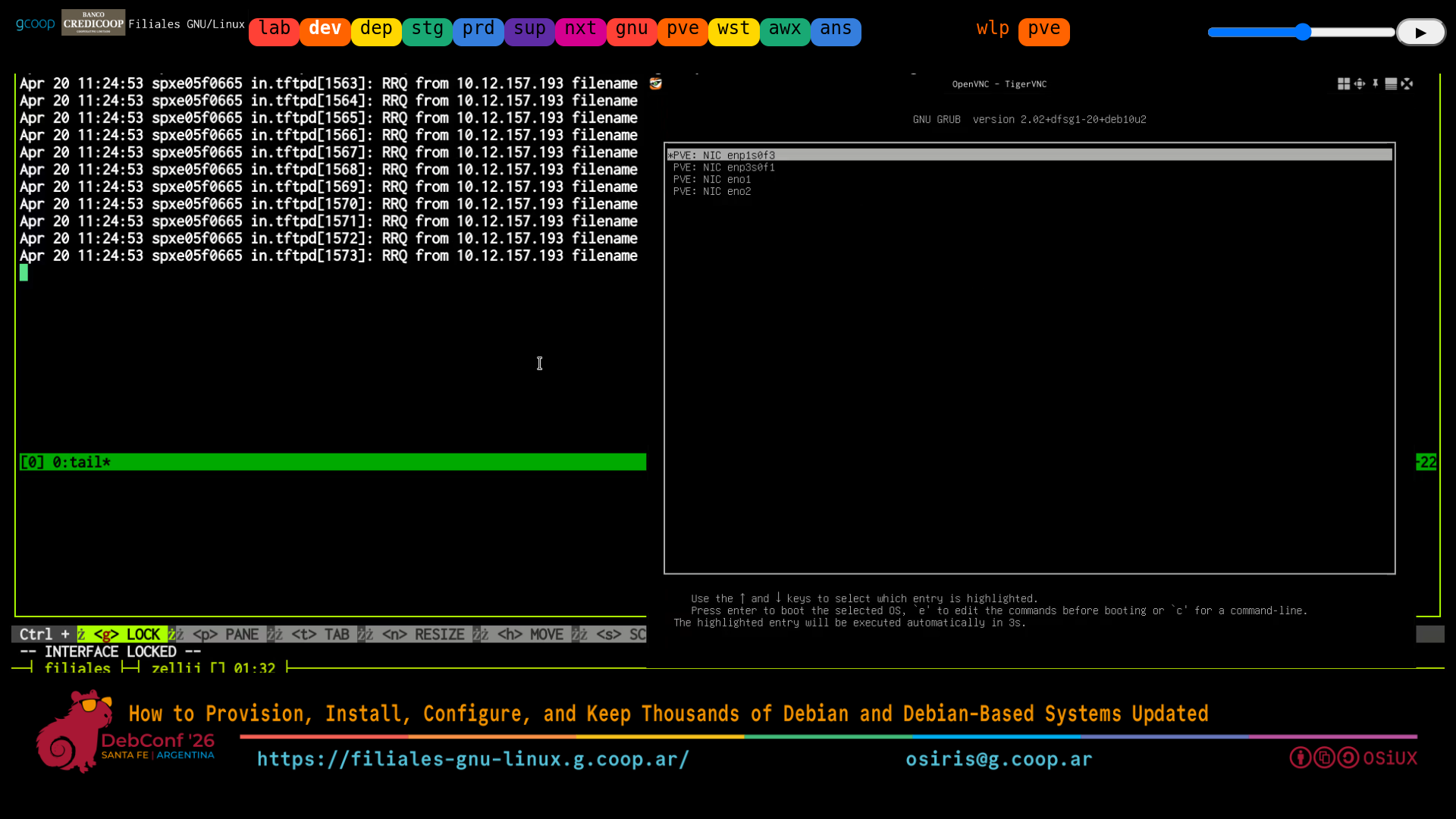

Over there on the left, the only thing there is the debug output of what is being seen on the PXE Server, and as you can see, the Server is at the PXE Server, the Server installs itself, there is no manual intervention and it finishes installed; it’s a Debian system.

The next playbook that is launched to AWX converts that Debian into a Proxmox, also in an unattended manner. That is, we do not install Proxmox; we install Debian and convert it into Proxmox. That is an advantage of Proxmox being a distribution based on Debian: the only thing that changes is adding a repo. And done, all necessary packages are configured.

And when it finishes configuring inside a Proxmox, we launch another playbook that creates the VMs, and yet another playbook that creates the services inside each VM. All the VMs we use are KVM. This is a Bank; it needs greater robustness in Security, so all machines are up-to-date. Over there on the left you can see the creation of all the different VMs. There are 10 VMs per Server and, rounding more or less, about 300 physical servers. That gives us a total of 3,000 Debian systems. Installed automatically across the entire country.

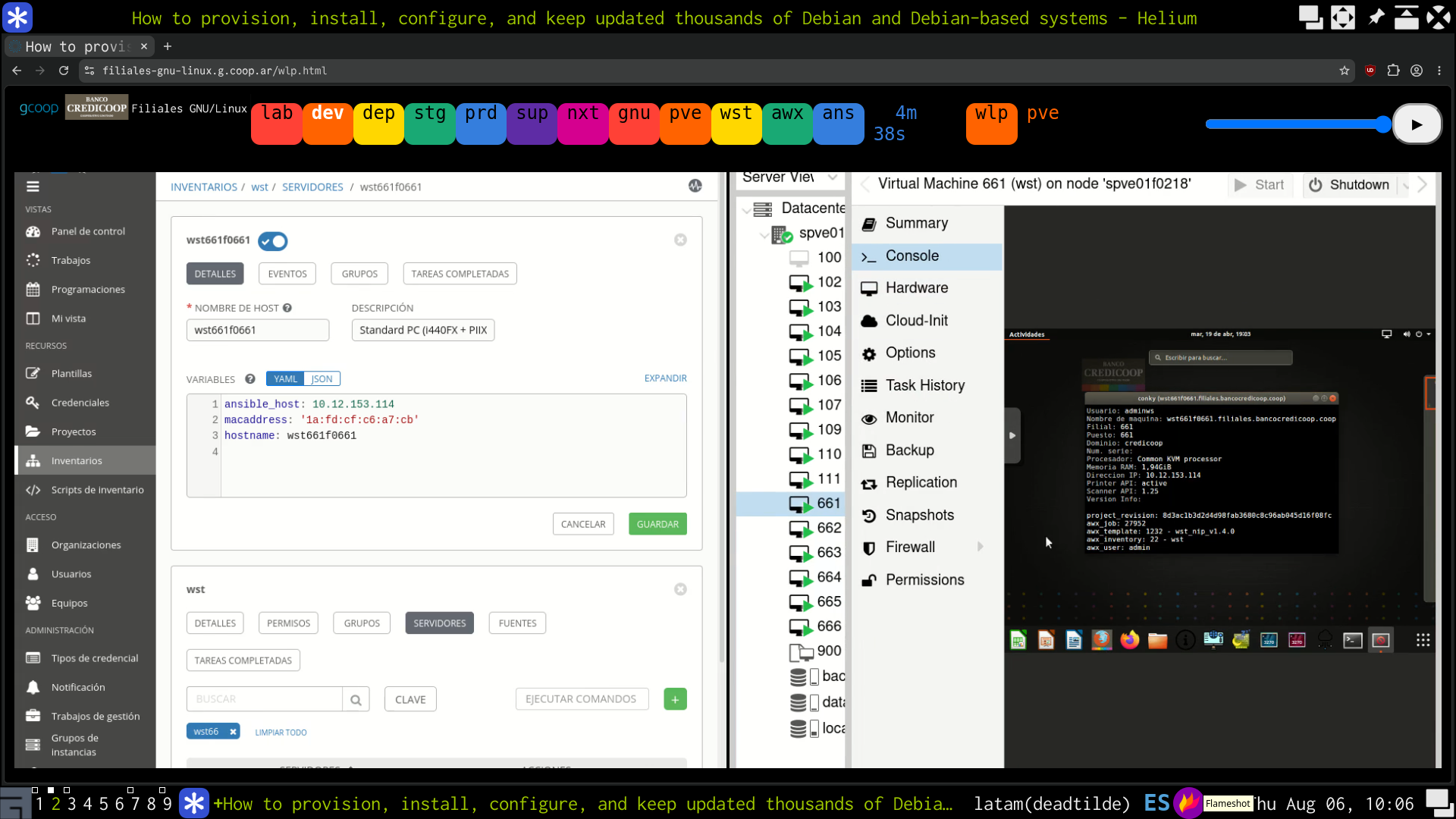

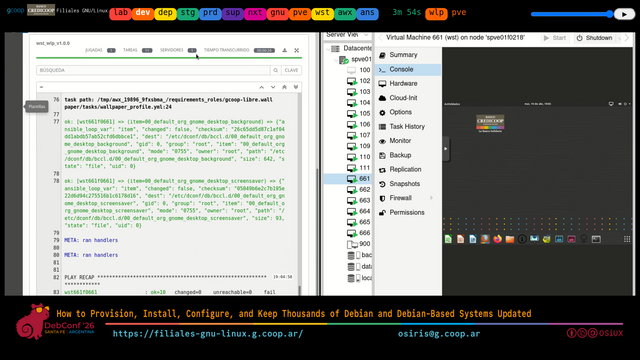

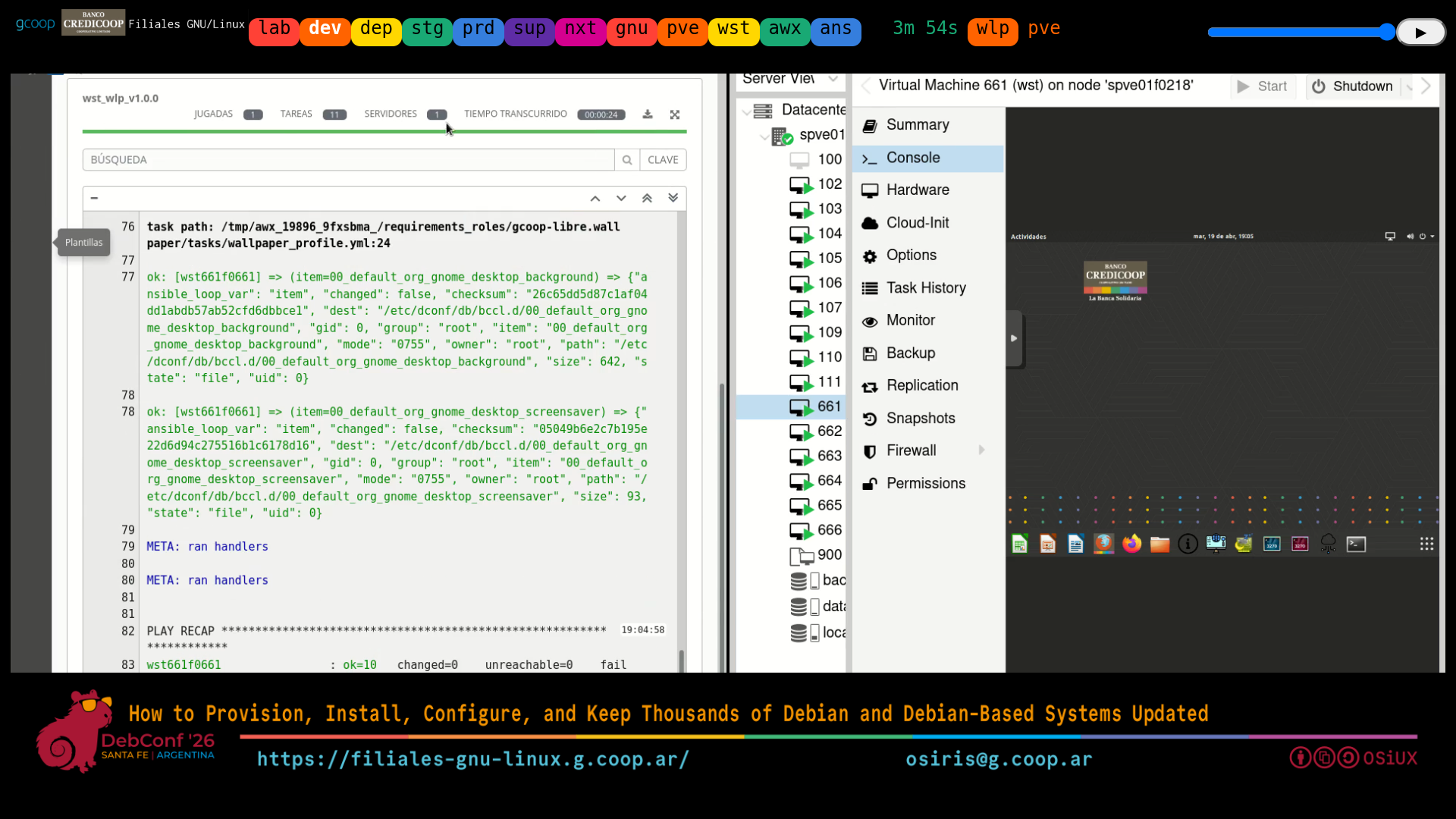

For workstations we made an image. There we are looking at a test virtual workstation from Development inside a Proxmox. And what we do is generate a base image, also a NetInstall in this case based on a distro based on Debian. And then we configure it, also in the same way, with a script. it takes the hostname of the machine, which can be configured later or reconfigured at the destination site. It is registered in the Inventory and remains available also with a manufacturer serial number. They are all HP Workstations. We can identify them uniquely, even if the MAC address changes at some point. It’s always the same device.

The graphical interface of AWX is basically a Web page written in Django. And there are lots of operators working by launching different playbooks we made, so that this stays operational. And the PXE server also takes workstation images. That is, you can take a workstation on-site; if it got misconfigured, something happened to it, doesn’t work, it doesn’t matter. The entire workstation image is rebuilt via PXE. No time is wasted waiting to see what’s wrong with it. You don’t access the machine manually. it is rebuilt from scratch. Why? Because there are no local data within the workstation. The data is on a Kerberized NFS Server within the same network as the branch where we are.

Well, and similar to the Proxmox, we have the workstations.

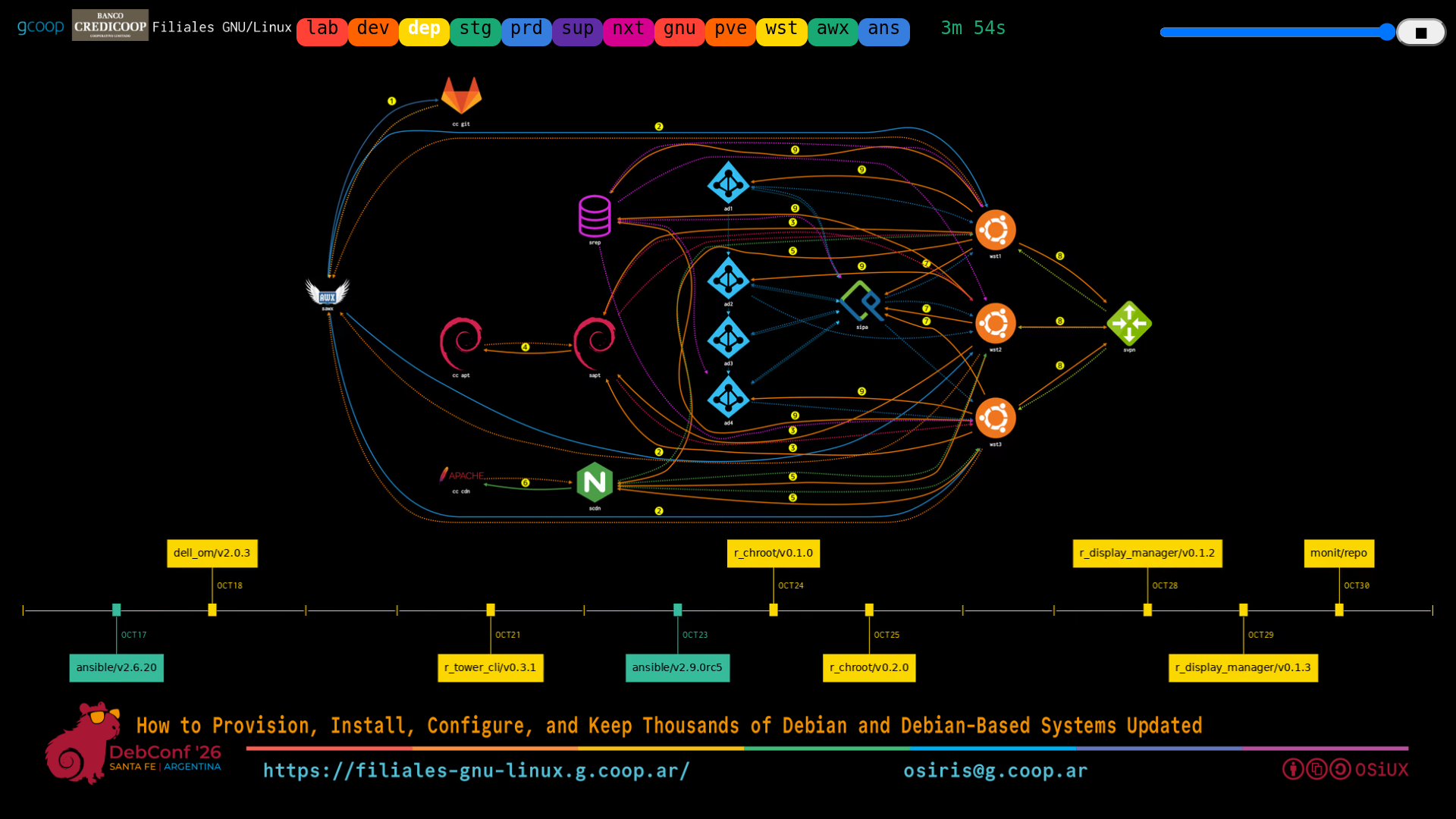

For the deploy at the branch, it’s a bit more complex because the deploy of the branch, as we said, we have 3,000 workstations. Of these 3,000 workstations there are no users on the workstations. That is, in those workstations, if you look at /etc/passwd, there are no local users, aside from the ones already in the system.

What we use is a FreeIPA client that connects to IPA and from IPA it connects to the 4 ADs we have. And they pull those domain users on the fly directly. And for this reason each workstation has to be enrolled in the domain as well. But what is done is that they enroll in the FreeIPA domain. And FreeIPA connects to the FreeIPA domain. And FreeIPA has a trust relationship with the ActiveDirectory domain. I mean, it’s like a subdomain. And what it allows is that for all those users, their password stays in the AD, which is the Bank’s infrastructure, without having changed anything for them. For them it is transparent. And from all GNU/Linux machines they use the same user directly. What is in the middle and enables this is called FreeIPA.

And to speed up the deployment process what we have new is multiple layers of caching. We have several proxies. Initially we had Debian’s apt-cacher. Now there are also some Debian mirrors. And then we have nginx for proxying and squid for caching. To make this work across the length and breadth of the entire country.

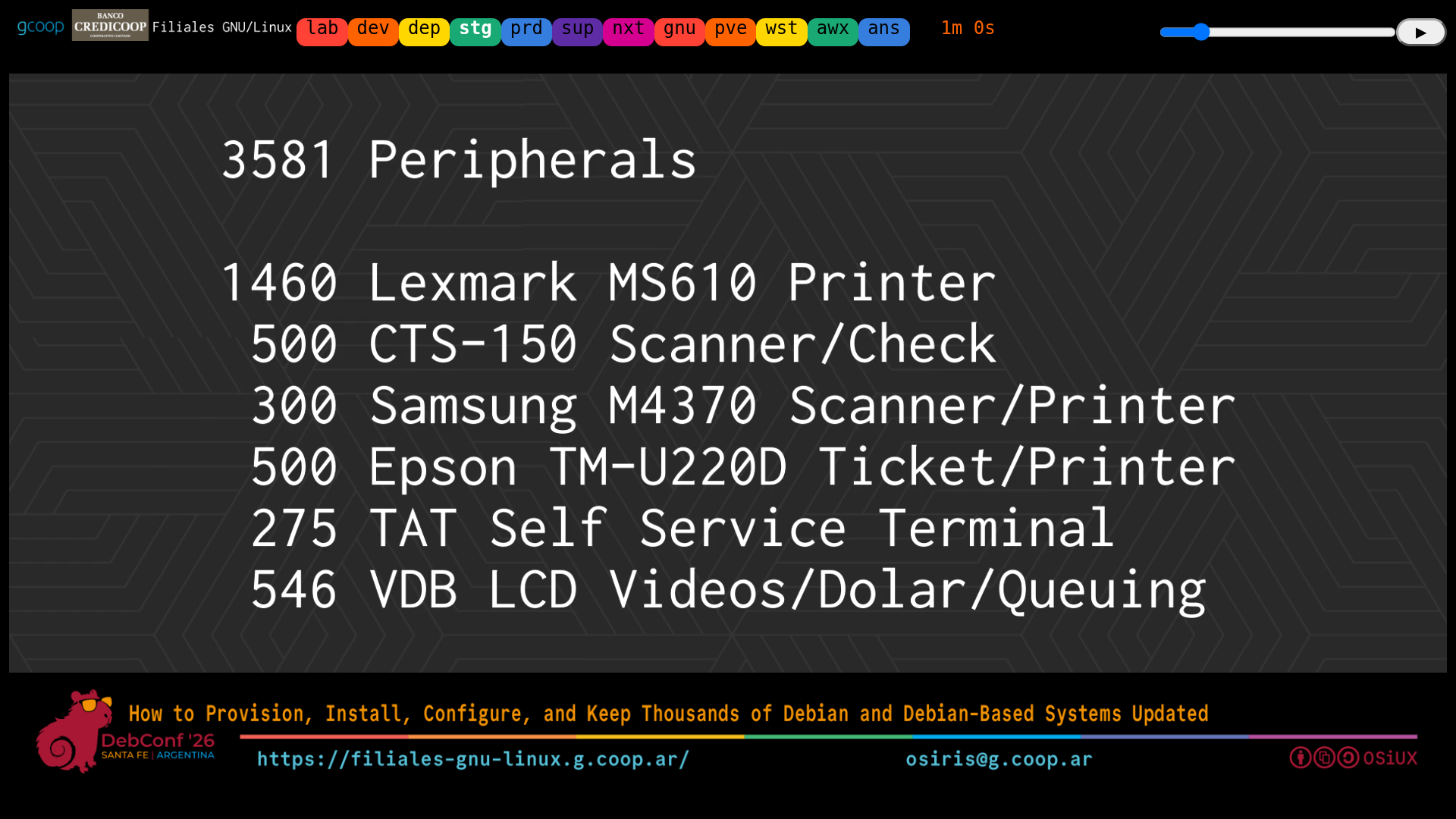

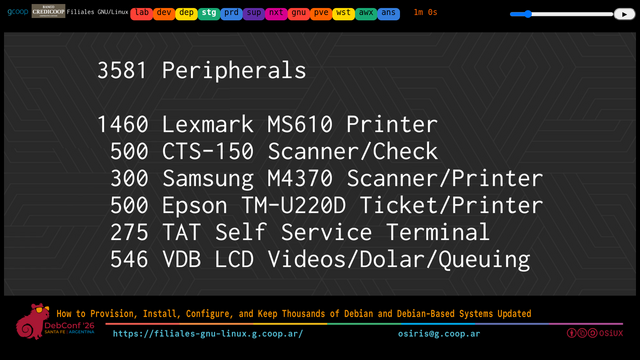

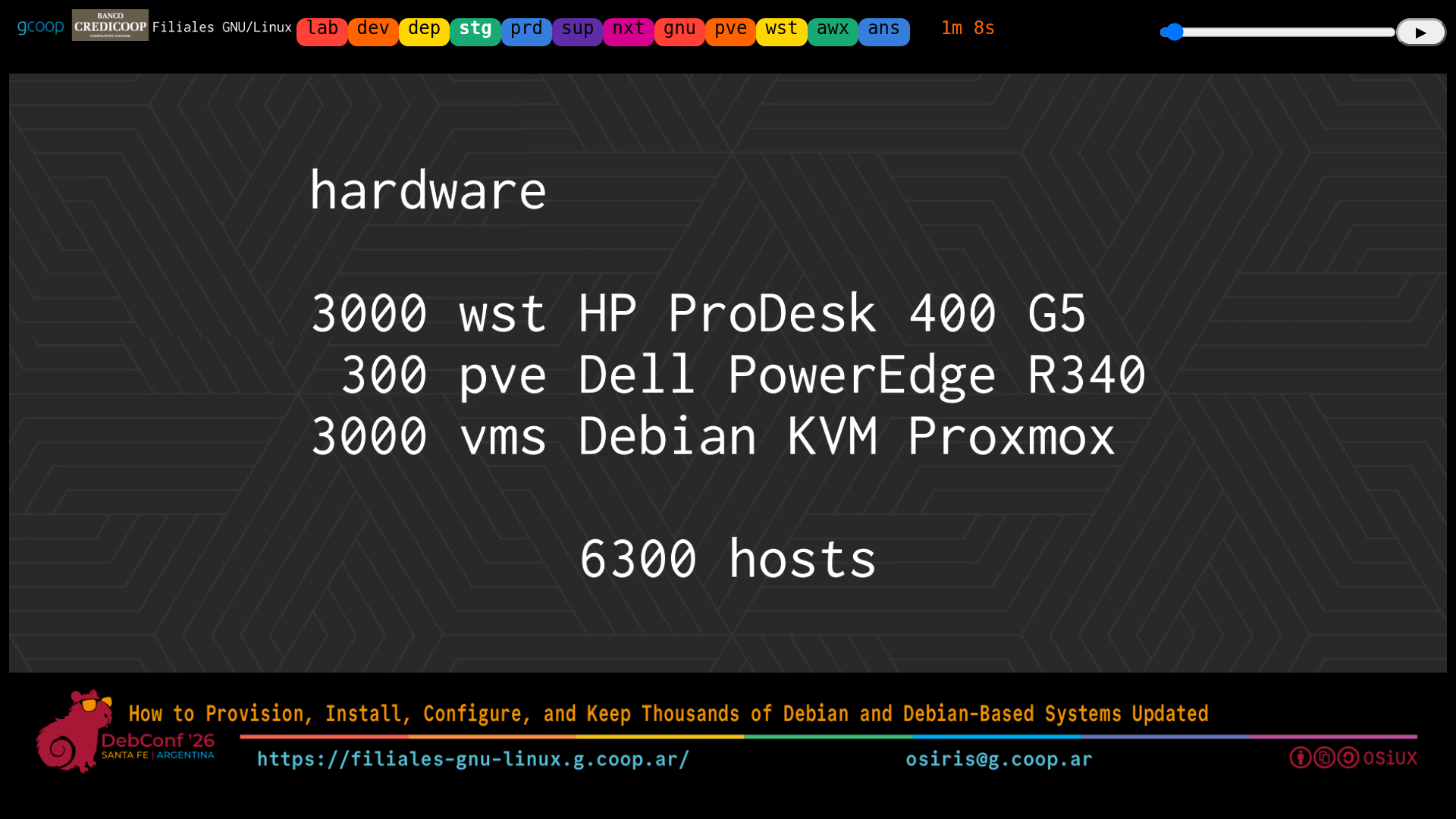

Here is a bit of the hardware IT started with. 3,000 HP ProDesk. 3,000 Dell servers. Sorry, 300 Dell servers. 3,000 virtual Debian. Afterwards IT changed a little bit. But also later we found 3,500 different peripherals. Strange things like a check scanner or a ticket printer.

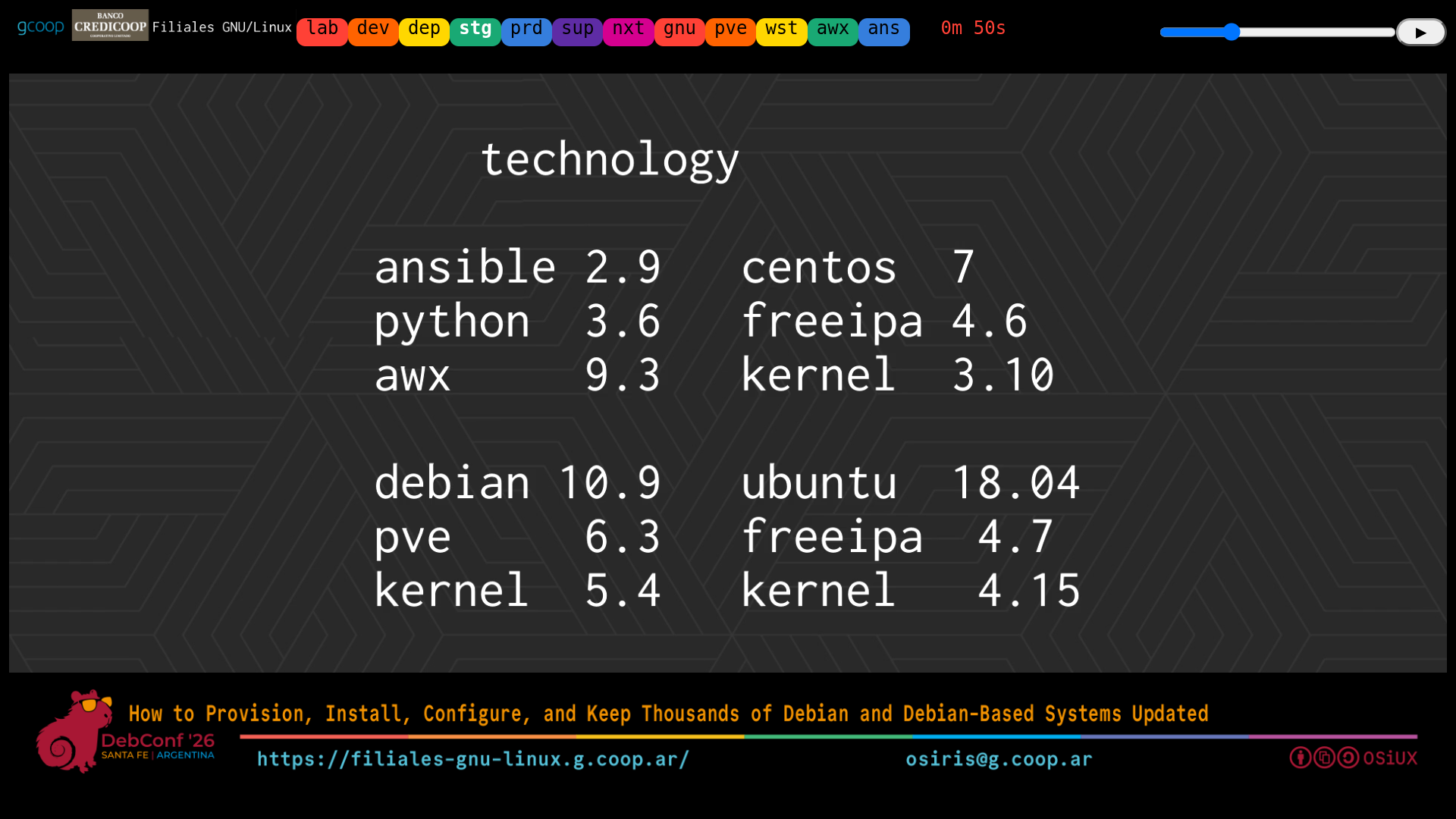

This is what the infrastructure originally was with which the project started in 2018. It kept varying. We also changed some VMs.

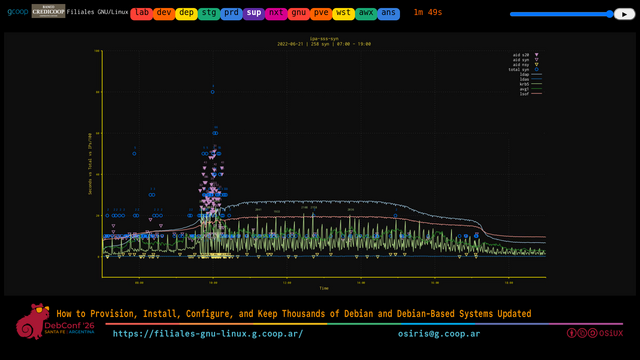

And quickly what we encountered were problems. Scale problems. This is a graph of login attempts during the day. And what you will see is that there is a little problem here at 10 in the morning. That is, 3,000 people wanted to log in at 10 in the morning. It looks the same when they go down later starting from 4 PM. The logins start going back up. And well, here there is a delay/caching problem. And other problems which is, imagine with 3,000 users, with the robust security policies of a Bank, every day many passwords expire and they have to be changed and all that. And that change has to be done from our distro’s login screen. That is, directly from there. It tells them the password expired and at that moment it asks for the old one, twice for the new one. Someone in the early morning gets confused. That generates another password issue. But about this… Now I will tell you what was worked on to improve it.

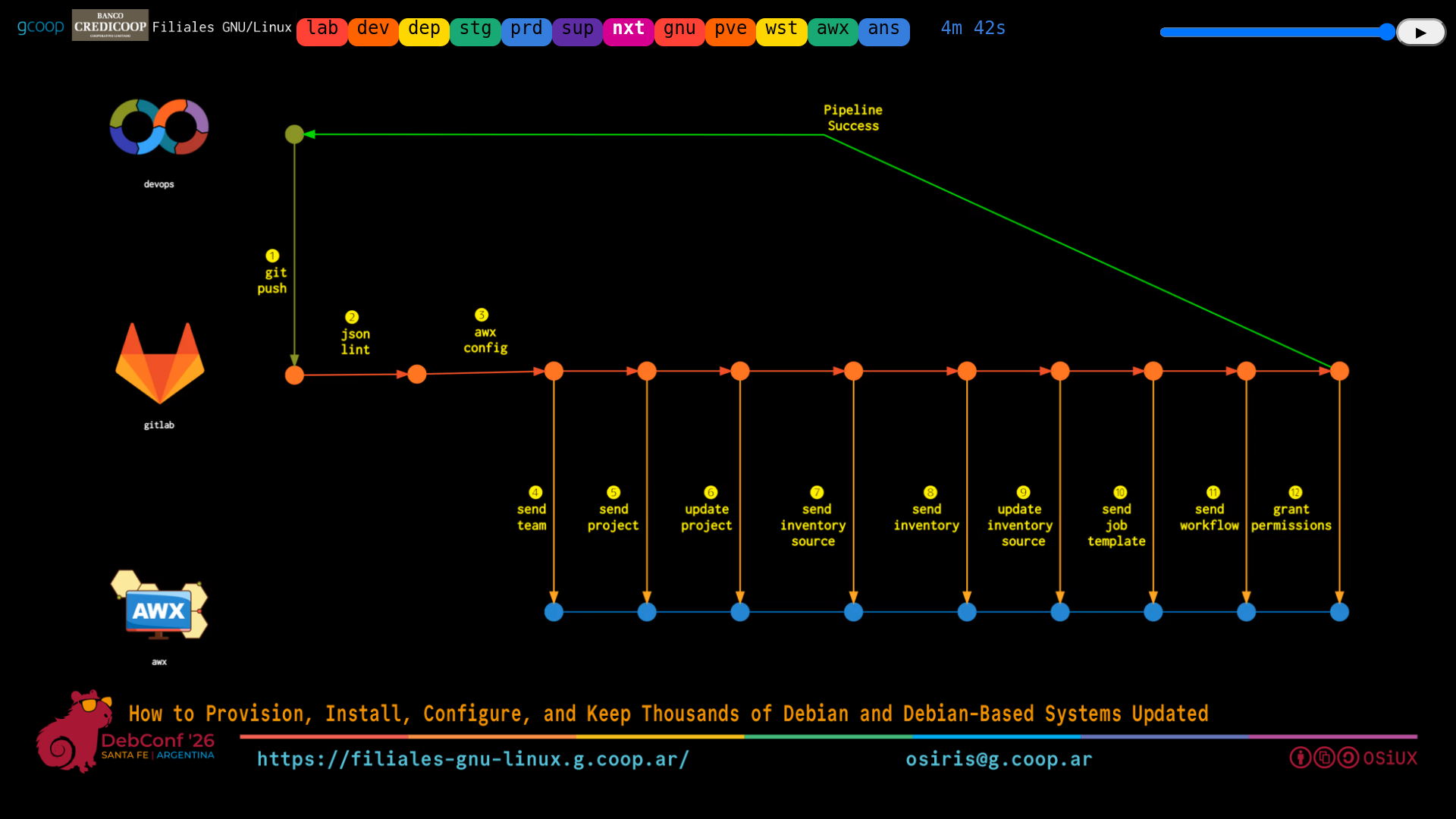

And so, to do that too, well, part of the automation we achieved is, instead of going to AWX, which is a graphical interface, and clicking to create playbooks, to create workflows, to create inventories, and giving permissions and all that manually, what we did is a Git repo called AWX, a repo called Inventory, and they are all JSON or YAML files, which GitLab’s CI directly verifies and deploys into a Development AWX immediately as we do the Git push. So in this way we can have all stages verified and automatically deployed in a Development AWX for Testing. In the Production AWX, this deploy is triggered manually, let’s say, but it creates the same instances. That guarantees us versioned infrastructure as code.

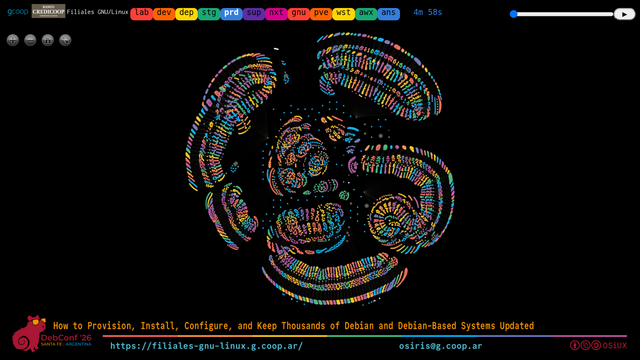

And to give you an idea of the project’s scale, this is a view of what the Bank’s productive infrastructure is. I said, it’s about 300 Branches distributed across almost all provinces of the country. And now, if we look closely at this, we will understand a little more; these are all hosts. And all these hosts are controlled by one over here, which I am going to find right now, there. This one here is AWX, it’s a single VM, not even on physical hardware, that controls all the others and deploys to all of them. Obviously they don’t deploy them all together, they deploy them in stages.

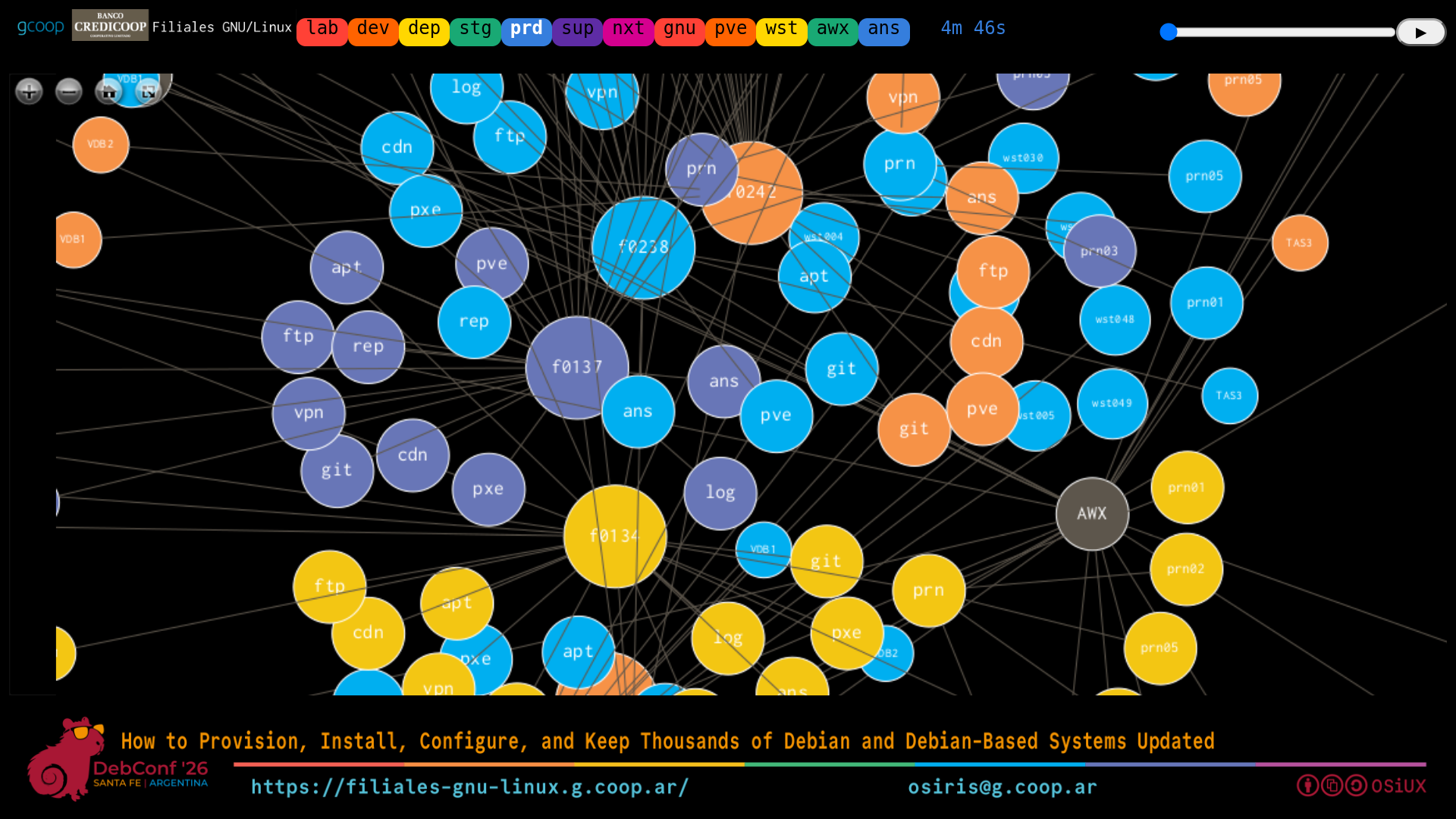

And what we have is that each line, for example here, let’s see, this is the province of… the province of Santa Fe. And I will try to highlight a little. All of this are the machines from all the different Branches of the entire province of Santa Fe. And if we zoom in on one, here, for example, it is f0372. And well, within the concept of that branch, we have a local caché, which is a CDN, the PVE, which is the Proxmox Server, the REP, which is the file Server, a Kerberized NFS, a log machine, which receives the logs from all the others and forwards them. Initially we did this with rsyslog. There is a VPN node that we do not intervene on, but we made the automatic installation, which basically that is configured BY the Bank’s personnel. We have an Apt-Catcher, there, local, within the branch. What else do we have? Well, this Git one, in the end we ditched it. The print Server, which is a CUPS, where all the place’s printers are configured. And then, here is the representation of the different printers from that branch. And then we will have the different Workstations. And finally the rest of the equipment there. Ticket printers and so on.

And this infrastructure, this infrastructure repeats throughout the Bank. So that if you don’t do this automatically, it is impossible to maintain.

And what we achieved with this is that this AWX infrastructure allows us that we no longer need to log into a machine manually and see what happens. There is an AWX playbook, from the Headquarters, where there is already a template to solve each problem. And you run that template and it leaves a Record of everything that happens, a traceable log. Obviously there are different permission levels. Who can do that? Who cannot? Schedules, for example. I don’t know, if we want all machines to shut down at a certain time, well, there is a template that sets a poweroff at a certain schedule on each machine. For example, and you launch it. You can do things like SNMP sweeps to know if certain machines are alive or dead. That is, all of that ends up in one, finally a PostgreSQL database, managed from AWX.

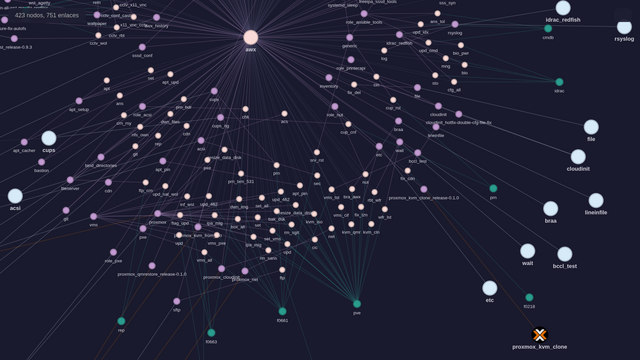

And if we wanted to see a little of what it is, this is, like a view of all the playbooks that are in AWX. Here is our AWX. Here I tried to organize them a bit. Here we have iDRAC Redfish, rsyslog, CDN. Well, here we have the Inventory. I don’t know if you can see anything there. You can’t see it there. Neither do I see it here either. But, let’s see, let’s look here. Here, for example, we have a role that clones a KVM VM in Proxmox So there is just a role for that. Over here we will see more. This role creates a KVM VM from Proxmox directly from an ISO. And it is an ISO that is already unattended. That is, you don’t have to do anything. That is for the VPN. A Proxmox role to configure cloud-init for each of the VMs We use the OpenStack image Let’s say cloud, but without cloud, local, to do a qm restore That is, we can restore a VM from a backup and it comes up running. And so, there is a playbook for everything.

Well, this is more or less what the migration project was. I will try to summarize, and move forward with what’s new. A little difference from this of 2022 to 2026 in what has been worked on.

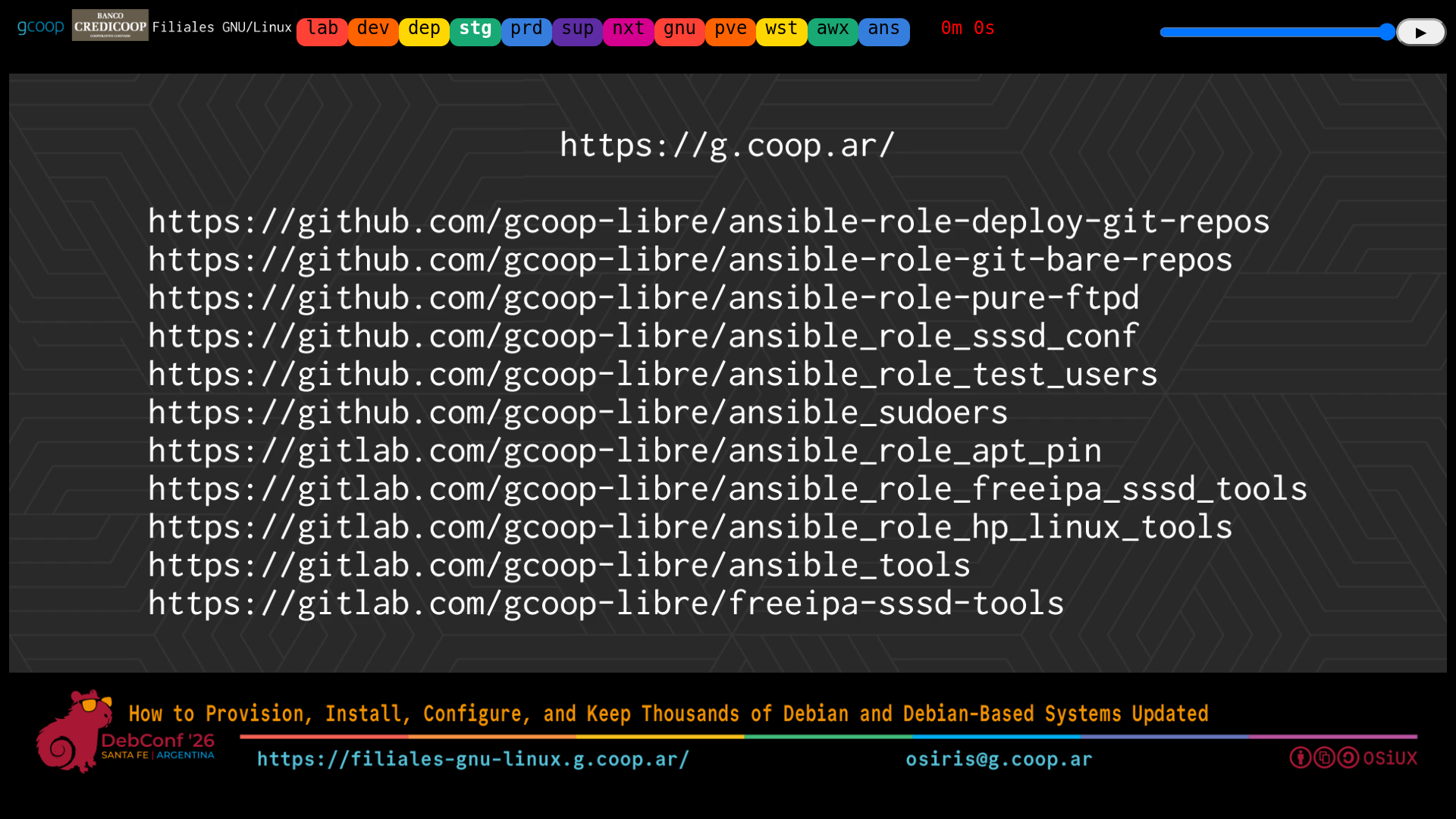

Well, there are over 200 Git repos to control all of this. Now what is being done, part of what was actually done, we worked a lot on cybersecurity. We changed from rsyslog to auditd. We integrated NUT for the UPS, to have UPS monitoring. We are working on updating the Debian from those VMs from 10 to 13. This, remember, started in 2018.

FreeIPA automation, now a new was done… that is, what we currently had in production was only one large FreeIPA VM. And since the Bank has OpenShift, we are doing a migration of FreeIPA to OpenShift. Also all with automated playbooks.

Here as a summary of everything done in Cybersecurity. It is a role that connects to each machine and says what is right, what is wrong. Some things it can correct and others simply say this cannot go to production like this.

We also worked on the topic of Kernel booting so that some Server models would appear and to identify the network cards and for everything to work automatically and disk repartitioning and so on, there are different Server levels. The regeneration of all these images. Everything that would be the lifecycle of the VMs that have to be registered. Several that were taken down. Others that changed that didn’t need a secondary disk somewhere. The order in which they start. A report of what the status of all this is. All those VMs and updates. Well, there’s a little of what I said about Server versions.

And we will advance because we are short on time.

For Workstation is what has been worked on the most because it had originally been worked on with a Workstation 18.04 and now we moved to 24.04 if I’m not mistaken. And then besides there are some problems they had. Remember this original infrastructure was not GNU and worked with Firefox v9. We took it to v68 and now we took it to v120 and tests are being done with v140. The problem is not so much the environment, but the problem is the ecosystem of all the internal applications that are not updated and don’t work. Basically it’s not an easy task. So for a moment more than one versión of browser coexisted. Uh… And that was another challenge.

And well, also issues of updating the Kernel version. We had to patch some difficult CVEs that came out recently. Well, at some point Chrome was also tried as an alternative for some sites.

We do with a playbook all the configuration policies of Firefox. The user basically cannot do anything. That is like… They can’t even change the wallpaper. Well it’s the way to keep 3,000 users. Well then… No one goes into a machine to configure it. From AWX a playbook is launched directly.

And, uh… Well the topic of WakeOnLAN, integration, updating the Kernel, sftp fixes. That is well everything that would lead to the new versión of IPA. We worked quite a bit with AppArmor to restrict… Uh… Some important things. The handling of login. Also handling being able to change the password. Uh… Well Backup and all that.

And, uh… Let’s see… A little of AWX here. Uh… Well there are 198 releases since we finished migrating it. Because as with any large infrastructure when you finish migrating it you have to start migrating again. Basically. It is in constant change. And well all the time after that new needs also come out…

Uh… Well we have CloneZilla for this I said of booting a machine with an already built image. Uh… And solving problems. Uh… Here uh isolated profiles. Isolated from each other due to configuration issues.

A part of CCTV was added. Machines that are integrated into the security cameras’ DVRs. Uh… So well that is like a new inventory being added.

Uh… HP Linux Tools, for example that… A detail is at one point uh a machine froze and froze in strange situations. We took long to investigate what happened. It had to do with a power saving configuration of the BIOS. And so the solution was simple. It was to go into 3,000 machines, change the BIOS configuration and reboot them. It’s done. It’s very simple. Do you need 3,000 technicians or uh as many as Branches in the entire country? It is impossible. And well there uh I set out to investigate /HP’s FTP. And found a crazy guy on Linux who had a tool that allows writing a file in the UEFI. With the BIOS configuration that it will take the next reboot. This requires compiling a Kernel module and so on. Uh… we told them to ask permission to HP and guarantee they weren’t going to turn into a BIOS that turns 3,000 bricks. They said Yes! And well we did several tests. Never happened to us. So they worked out fine. Uh… And that allows well again centralized administration you could even change the password of the BIOS of all machines centrally and remotely. So it’s super useful.

Uh… Well here for example this modification of the Git tokens and… There are a lot of things.

This… At the URL down below, https://filiales-gnu-linux.g.coop.ar all of this will be available. So if you want to see it in detail.

Uh… And since there are five minutes left uh if it’s okay I’ll close here and ask anything you want… Because we won’t manage to see everything.

Audience: Hi. Uh… Are the ActiveDirectory you use Windows or do you also use Windows Server?

OSiUX: Yes it’s Bank infrastructure. Uh… That already existed and they weren’t going to change it. The challenge was that all those users work on the new workstations. Uh… And it works.

Audience: First of all impressive.

OSiUX: Thanks to the Free Software community! Uh… We put the pieces together.

Audience: You really squeezed every bit out of Ansible, but I didn’t think that much could really be done. I had a particular small doubt about something I saw. You said you changed from rsyslog to auditd

OSiUX: Yes. It was a cybersecurity request.

Audience: But the intention. Let’s say rsyslog logs a level we call application maybe a system level. And auditd points a bit more to the syscalls of the system itself.

OSiUX: Yes, but it allows more detail. You can specify exactly what parts you want.

Audience: No no no. I understand. My doubt is, are you logging the syscalls of 3,000 clients?

OSiUX: That is… Not from all workstations. Actually it’s uh… Generally from the VMs mostly and some things. It is selective, not everything.

Audience: Ah ah.

OSiUX: No, because otherwise there’s no way.

Audience: No no it’s fine. That was it.

OSiUX: Exactly, it’s to not send all the logs. That is, to send selectively. All this information goes to a SIEM that is at Headquarters.

Audience: Just one?

OSiUX: Yes, well it could be more than one node.

Audience: Ah no.

OSiUX: But let’s say conceptually it goes to a SIEM where everything that happens is visualized there. And also to the SIEM goes all… the log of the AWX deploy. So also…

Audience: Like SIEM?

OSiUX: No, another I don’t remember now but it is known. Now if I tell you I’d lie. (it was Splunk that was the SIEM)

Audience: Thank you very much.

Audience: I agree with the colleague, hard work, a tough Job. And moreover done with Free Software. My question is basically based on the experience of the whole project. What went really well? What are you going to start doing apart from what you mentioned? And what things went one way and you said no this doesn’t go this way we pivot?

OSiUX: The biggest challenge in general is not technical itself, but it’s dealing with the priorities of everything that needs to be done. And with things at user level for many free applications are not designed for such a large scale. And a problem where you want users to not be able to touch anything. For example, there are PDFs that are like smartforms you can fill out. And then you have to print them. And that was really complex to solve. At the beginning we had to install Adobe Acrobat with I don’t know wine or some horrible thing because it was the only one that supported it. evince showed them but didn’t allow us to complete. After we had an option I don’t remember which allowed us to complete. But it didn’t let you hide the comment in each form, in each textbox. And that came out printed and didn’t work. Now we worked on okular which has all that. But doesn’t have any file-by-file configuration option to disable everything. That is, the user can deactivate it in the moment. Well then we worked. We are touching Okular’s code so that works. The same happened with some binaries that don’t have translation and don’t have translation Support. And well what we could we edited with a hex editor and deployed our binary. Things like that, let’s say with apologies to Asians we call them Chinese. (“Sorry, I will avoid this type of comment in the future”). That is, there are things sometimes you have to get hands-on and solve it. Or complex Bugs where I don’t know you enter a screen and for X reasons if you move the mouse a little further down to the right gnome freezes. And then you have to put a script that prevents you from going down. And also things that a user owner of their environment doesn’t have a problem with because they can customize. And an end user cannot touch anything. And you as Admin of this infrastructure also don’t want them to touch but you have to give them a solution. Like thousands of things. What we didn’t get involved in and delegated was the check scanner integration part. I tried for a while and couldn’t get it. That was outsourced. But it works. We did manage to get the ticket printer to work well. And that implied a challenge that the banking core at that time used some Java applets. And that nothing was impossible. We had to PUT a chroot in the middle with something old for that to work. Well in the end we could avoid all that. Because now that core already detects when it’s GNU/Linux and done, it throws code and we PUT a local Backend that does everything missing and it works out. But yes it’s a challenge of many people. I am currently not on the project. I was in the initial development and migration Stage. There are three people now who are full time on this. And every day something new appears.

Audience: Well excellent.

OSiUX: I can stay here and chat.

Audience: Well. OSiRiS, first thank you. For those of us who came here to learn. The admiration you generate with everything you tell. My question doesn’t go by…

OSiUX: It’s gcoop work too, not mine… I’m just selling it.

Audience: Of everyone. My question goes more. Goes more that way. Not the technical side. But by the team or human group. That exists in Branches GNU/Linux which if I understand is the organization behind this whole project. How many people are needed to do this? And how do you manage it?

OSiUX: Well initially it was a six month project. Of two people. A functional analyst and me. To see if the project was viable. Afterwards started. I think we started three people. At the peak we reached three people? Five?

gcoop: Three plus one.

OSiUX: Yes sure. Always with a PM. But at the peak five no. I mean I think there… I don’t count the PM poor. Because he always talks about we are not people. That we are developers. That we are weird things. So well it’s revenge. No at the peak five people. Today there are three. Of DevOps, let’s say. But that have to. Let’s say is the FullStack. So to speak. But then you have to touch or redesign an application. I mean we had to design applications to fix existing things. I mean it’s the fun and complex at the same time.

Audience: I thought you were going to say three hundred, I don’t know. Thank you very much.

OSiUX: No no, sorry. We designed the automation of all this. The Bank has its own arsenal. An army of people who use all this daily. They did the migration in full pandemic 2020. In less than a year! But it was a physical army of people that solved all that. AWX operators I think they are more or less like sixty. That is like… Well there’s so much people. The Bank’s Infra is very big. And it’s all On-premise. It’s all local. That is and all with Free Software.

Audience: Thank you very much.

Organization: There, Alejandro. I’ll put a question in the chat here. If later you can answer it there itself.

OSiUX: Yes. And later I have here colleagues who know how to speak English. And that if there is someone who doesn’t speak Spanish.

Organization: Sure. And Alejandro will be around today. So you can keep asking him. Thank you very much.

OSiUX: OSiUX too!
